Seal 62 Pro S 62" Laminator

Product ID: Seal-62-Pro-S-62-Laminator

Looking to expand your finishing capacity with more versatility? Look no further than the SEAL 62 Pro Series!

This range includes a dual heat and single-heat model to suit every application need and budget.

With full independent control over pressure and speed, the SEAL 62 Pro S is ideal for both new and experienced image finishers who require a highly capable laminator but have no need for hot encapsulation. The 62 Pro S is based on the widely acclaimed 62 S and features the same high pressure nip system. This delivers superb results whatever the application required.

Key Product Features
Applications
Technical Capabilities
Additional Information
Downloads
Other
Reviews

Adjustable pressure and speed settings for maximum versatility
2.5 N/mm line pressure for superior cold lamination
40 mm nip opening to cover a wide range of substrates
1600 working width to cope with a wide range of media
2 combi shafts (bottom) to maximize processable applications
Variable roller technology for better processing of soft substrates
Maximum speed of 6m/min for increased production capacity
Manual nip adjustment for precise operation
Ergonomic control panel for ease of use
Swing out suppy shafts for easy loading
Suitable for;

	Hot	Cold
Mounting	Yes	Yes
Laminating	Yes	Yes
Encapsulating	No	Yes

Click here to arrange a visit to one of our demo suites or for further information.

Rigid Indoor Displays
Flexible Indoor Displays
Floor Graphics
Backlit Displays
Roll-up Displays
Rigid Outdoor Displays
Suitable for:

	Hot	Cold
Mounting	Yes	Yes
Laminating	Yes	Yes
Encapsulating	No	Yes

Rollers: Single (Top)
Maximum working width: 61" / 1550 mm
Maximum substrate thickness: 1 1/2". (38mm)
Maximum speed: 20'/min. (6m/min)
Electrical requirements: 1N/PE 230VAC +/-10% 50/60 Hz, 50A

Optimum performance

• Adjustable settings for increased capacity and versatility

• Manual nip-adjustment for precise operation

• 11/2" (38 mm) nip opening for processing a wide range of substrates

• Fast processing speeds - up to 20ft (6m) / minute

• Superior roller technology for better processing of soft substrates

• 14.28 lbf/in (2.5n/mm) line pressure for superior cold lamination

Ease of use

• Ergonomic touch pad control panel

• High release silicone rollers for easy cleaning

• Lightweight drop-in supply shafts with auto-grip for easy loading of materials in tight spaces

• Exclusive ‘stay-put’ swing up feed table keeps table up, making media handling and set-up a snap

• Simple film tension adjustment

• Auto-grip upper take-up shaft for winding release liners

• Roll-to-roll operation (from bottom unwind)

Safety

• Foot switch for hands free operation

• Comprehensive safety system with emergency stops and self-checking safety eyes

• CE/ETL/CSA certified

Optional Extras

Max. Working Width	61" (1550 mm)
Max. Speed	20 ft/min (6 m/min)
Electrical Requirements	1N/PE 230VAC +/-10% 50/60 Hz, 50A

Auto-grip Shafts

Cantilevered supply shaft

Manual nip-adjustment for precise operation

Flip-up pull rollers (62 Pro D)

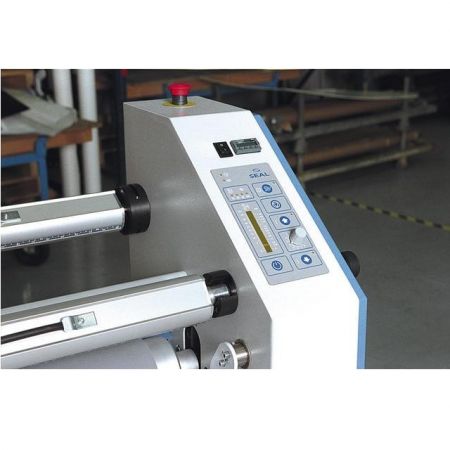

Ergonomic Control Panel
62 Pro S

Easy Feed Table (option for all models)

Click here for further information

The SEAL 44 and 62 Ultra Plus Series is the ultimate range of easy to use roller laminators. Low-priced yet fully functional, these laminators are an ideal match for your wide-format printer when high quality, professional graphics are required.

There are five models to choose from:

44 Ultra Plus
44 Ultra S Plus
62 Ultra Plus
62 Ultra Plus S
62 Ultra Plus C

	44 Ultra Plus	44 Ultra Plus S
Item Number	63068	63069
Max. Working Width	44" (1115 mm)	44" (1115 mm)
Max. Speed	5 ft/min. (1.5 m/min.)	5 ft/min. (1.5 m/min.)
Max. Nip Opening	1/2" (10 mm)	1/2" (10 mm)
Electrical Requirements	Single Phase 115 VAC, 50/60 Hz, 16A	Single Phase 115 VAC, 50/60 Hz, 16A

	62 Ultra Plus	62 Ultra Plus S	62 Ultra Plus C
Item Number	63064	63065	63066
Max. Working Width	61" (1550 mm)	61" (1550 mm)	61" (1550 mm)
Max. Speed	5 ft/min (1.5 m/min)	5 ft/min (1.5 m/min)	10 ft/min (3m/min)
Max. Nip Opening	1/2" (10 mm)	1/2" (10 mm)	1/2"
Electrical Requirements	Single Phase 230 VAC, 50/60 Hz, 13A	Single Phase 230 VAC, 50/60 Hz, 13A	Single Phase 115 VAC, 50/60 Hz, 1A
